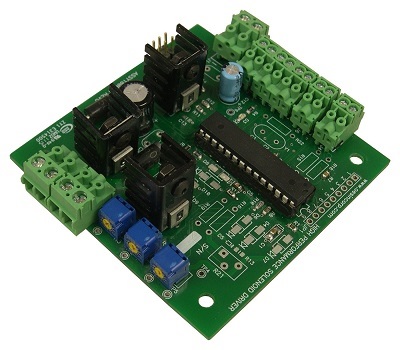

High Performance Solenoid Driver, Pick and Hold Module
|
|
|
Features
- Low Cost
- Small Size
- Low Weight
- Highly Efficient
- Stand Alone
- Microcomputer Based, May Be Re-programmed for Your Application
- Highly Reliable
- Pulse Width Modulated (PWM)
-
Single Supply, from +9 VDC to +50 VDC
- High Supply Voltage, +50 VDC
- High Output Current,
15 Amps Peak, 4 Amps RMS
- Incorporates Flyback (Snubber,
Freewheeling)
Diode per Output Device
- Available with High Side Driver
- QUANTITIES AVAILABLE IN STOCK
|
|
Typical
Applications
- Solenoids
- Valves
- Relays
- Actuators
- Voice Coil Actuators
- DC Motors
- Hydraulics
- Electromagnets
- LEDs
General Specifications
- Supply Voltage, +9 to +50 VDC
- Peak Current, 15 Amp
- Average Current,
4 Amp
|
|
|
The High Performance
Pick and Hold
Solenoid Driver Module is designed to avoid
over heating of the solenoid coil once it is energized. It is done by applying an initial higher voltage to the
solenoid coil to provide the necessary force (torque) to pull the plunger
in. Then, when seated, drops the voltage down to a level sufficient
to maintain the plunger in the seated position.
The pick time and hold voltage are
variable and set using the onboard potentiometers.
A
DIN-rail mount bracket is
available for this product.
This product has been featured on
Sensors Online
and Product Design
& Development.
|
|
Performance Specifications
|
Parameter
|
Min
|
Typical
|
Max
|
Units
|
|
Supply Voltage
|
9
|
|
50
|
VDC
|
|
Peak Current
|
|
|
15
|
Amp
|
|
Average Current
|
|
|
4
|
Amp
|
|
Command Range
|
3
|
|
50
|
VDC
|
|
Operating Temperature
|
0
|
|
50
|
Deg C
|
|
Weight: -01
Version
|
|
45
|
|
gr
|
|
Weight: -02
Version
|
|
55
|
|
gr
|
Performance Table
|
Part No.
|
Input Signal
|
Pick Voltage
|
Pick Time
|
Hold Voltage
|
Hold Time
|
PWM Frequency
|
|
PH-ET-xx
|
Pulse,
3-50
VDC
|
Equal
to Power Supply Voltage
|
Variable, Set by a Trim Potentiometer,
0 to 2000 msec
|
Variable, Set by a Trim
Potentiometer,
0 to 100% of supply voltage
|
Indefinite
|
2 KHz
|
|
|
|
|
|
|
|
|

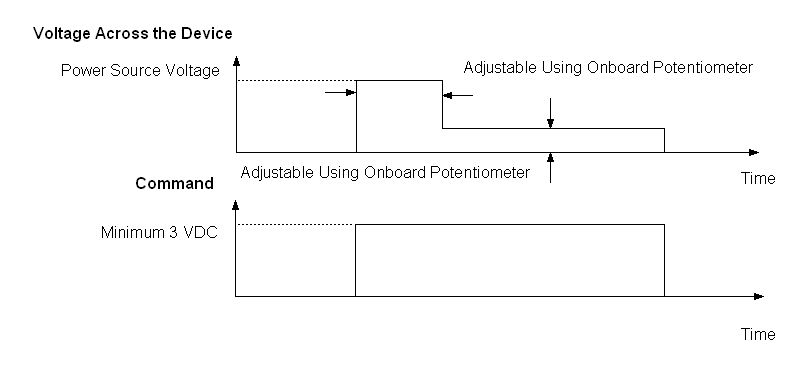

Timing Diagram
|
Mechanical Specifications
|
|
Mounting Pattern
|
Four 6-32 Screws, 0.15" Diameter (3.8 mm)
|
|
Dimensions
|
3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm)
|
|
Connectors
|
Power and Solenoids,
Phoenix Contact Part Number: 1934861
Signals, Phoenix Contact
Part Number: 1984015
|
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
PH-ET-01
Wiring Diagram
|
Single-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version, Low Side Driver
|
Click to Get a Quote
|
PH-ET-02
Wiring Diagram
|
Two-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version, Low Side Driver
|
Click to Get a Quote
|
PH-ET-03
|
Single
-device High Performance Pick and Hold Solenoid Driver Module,
+40 VDC Version,
Selectable Low/High Side Driver, Peak Current 4 Amps
|
Click to Get a Quote
|
PH-ET-05
|
Single-device High Performance Pick and Hold Solenoid Driver Module for
Latching Solenoids,
+40 VDC Version,
Peak Current 4
Amps
|
Click to Get a Quote
|
PH-ET-11
|
Single-device High Performance Bidirectional
Pick and Hold Solenoid
Driver
Module,
0-5 VDC Input Signal,
+40 VDC Version, Peak Current 4 Amps
|
Click to Get a Quote
|
|
PH-ET-16
|
Single-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version, Low Side Driver,
PWM Frequency is 16 KHz
|
Click to Get a Quote
|
|
PH-ET-17
|
Two-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version, Low Side Driver,
PWM Frequency is 16 KHz
|
Click to Get a Quote
|
|
SCSD-01
|
Single-device Serially
Controlled Solenoid Driver
|
Click to Get a Quote
|
|
SCSD-02
|
Dual
-device
Serially Controlled Solenoid Driver
|
Click to Get a Quote
|
|
|
