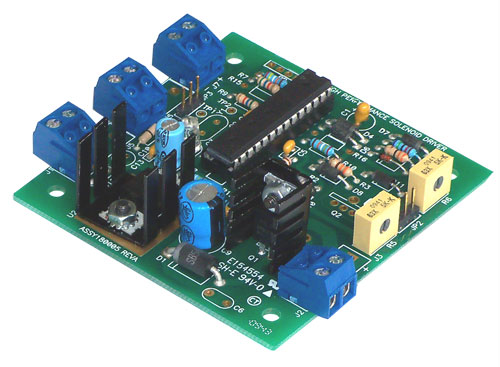

High Performance Solenoid Driver, Pick and Drop Module
|
![High Performance Solenoid Driver, Pick and Drop Module](images/pick-and-drop.jpg) |
|
Features
- Low Cost
- Small Size
- Low Weight
- Highly Efficient
- Stand Alone
- Microcomputer Based, May Be Re-programmed for Your Application
- Highly Reliable
- Pulse Width Modulated (PWM)
- Single Supply, from +9 VDC to +50 VDC
- High Supply Voltage, +50 VDC
- High Output Current, 15 Amps Peak, 4 Amps RMS
- Incorporates Flyback (Snubber, Freewheeling)
Diode per Output Device
- Available with High Side
Driver
- QUANTITIES AVAILABLE IN STOCK
|
|
Typical
Applications
- Solenoids
- Valves
- Relays
- Actuators
- Voice Coil Actuators
- DC Motors
- Hydraulics
- Electromagnets
- LEDs
General Specifications
- Supply Voltage, +9 to +50 VDC
- Peak Current, 15 Amp
- Average Current, 4 Amp
|
|
The Pick and Drop Driver Module applies a
single pulse to the device, then drops the supply voltage to zero.
This is done by applying a signal to the trigger input of the module.
The trigger voltage could be a TTL / CMOS compatible signal or any
voltage between 3.0 VDC and the DC power source supply voltage .
The pick time is set using an onboard potentiometer and can be adjusted
up to one minute.
The OES'
Solenoid Controller
Card could be
used to control up to sixteen Pick and Drop Modules.A
DIN-rail mount bracket is
available for this product.
|
|
Performance
Specifications
Parameter |
Min |
Typical |
Max |
Units |
Supply Voltage |
9 |
|
50 |
VDC
|
Peak Current |
|
|
15 |
Amp |
Average Current |
|
|
4 |
Amp |
Command Range |
3 |
|
50 |
VDC |
Operating Temperature |
0 |
|
50 |
Deg C |
Hold Time |
5 |
|
60,000 |
msec |
Performance Table
Part No. |
Input Signal |
Pick Voltage |
Pick Time |
Drop
Voltage |
PDD-xx |
Pulse, 3-50 VDC |
Equal to Power Supply Voltage |
Variable, Set by a Trim Potentiometer,
2
milliseconds and one minute. |
Zero |

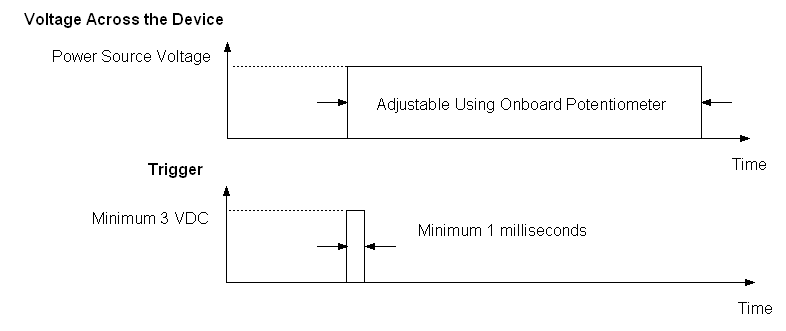

Timing Diagram
|
|
|
|
|
|
![](images/pad-timing-diagram.gif)
Mechanical
Specifications |
Mounting Pattern |
Four 6-32 Screws, 0.15" Diameter (3.8 mm) |
Dimensions |
3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm) |
![](images/driver-dimensions.jpg)
|
Ordering Information
|
Part No. |
Description |
Amount |
PDD-01 |
Single-device High Performance
Pick and Drop Solenoid Driver Module,
+50 VDC Version, Low Side Driver |
Click to Get a Quote
|
PDD-02 |
Single-device High Performance Pick and
Drop Solenoid Driver Module
for Latching Solenoids, +50 VDC Version,
Low Side Driver |
Click to Get a Quote
|
PDD-01-HC |
Single-device High Performance
Pick and Drop Solenoid Driver Module, High Current Version,
Low Side Driver |
Click to Get a Quote
|
PDD-01-HV |
Single-device High Performance
Pick and Drop Solenoid Driver Module, +80 VDC Version,
Low Side Driver |
Click to Get a Quote
|
SCSD-01 |
Single-device
Serially Controlled Solenoid Driver |
Click to Get a Quote |
SCSD-02 |
Dual-device
Serially Controlled Solenoid Driver |
Click to Get a Quote |
|
|
|
|
|
