Motorized XY-plane Table

Home > Motorized Linear Stages > Low Cost Linear Two-axis Stages

This two-axis motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 15 mm of travel at a maximum speed of 5 mm per second. The drive mechanism is lead screw.

The bench size is 65 X 65 mm and has a body weight of 4.6 Kg.

This linear stage is also available with a Servo Motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.



Structure Description


15 mm

Table Size 65 mm 65 mm
Lead Screw Pitch 1 mm per turn
Travel Guide

High Precision Crossed Roller


Phase Resistance 3.8 Ohm, Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
3 Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
4 Return for+5 VDC
5 Not Connected
6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity
Weight 4.6 kg

Typical Accuracy

Resolution Control Electronics Dependent, 0.25 microns with 10 Micro-steps per Step Motor Driver in use
0.125 microns with 20 Micro-steps per Step Motor Driver in use
Maximum Speed 5 mm / sec
Repeatability 3 microns
Positional Accuracy 10 microns

Accessories Description

Optical Encoder
Servo Motor (-02)

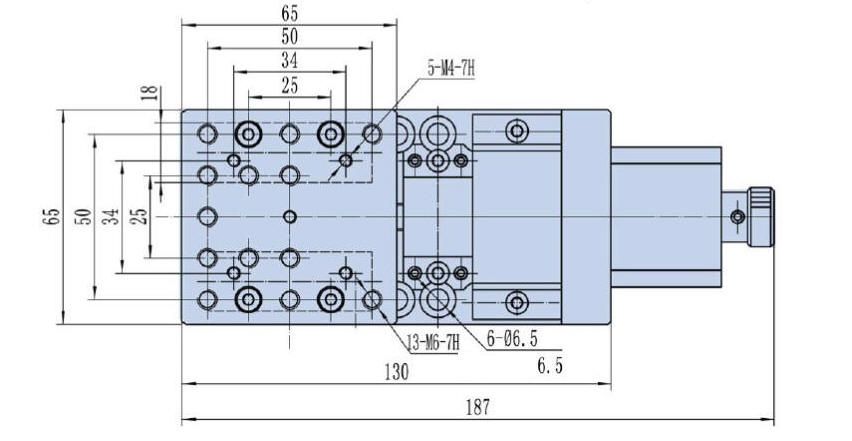

Stepper Motor Driven Mechanical Drawing


Motorized Linear Two-axis XY Stage, Travel  : 15 mm


Click to Get the STEP file of XY110-15.

 Ordering Information

Part No. Description Amount
XY110-15 Stepper Motor Driven Two-axis XY-plane Stage, Travel  : 15 mm Click to Get a Quote
