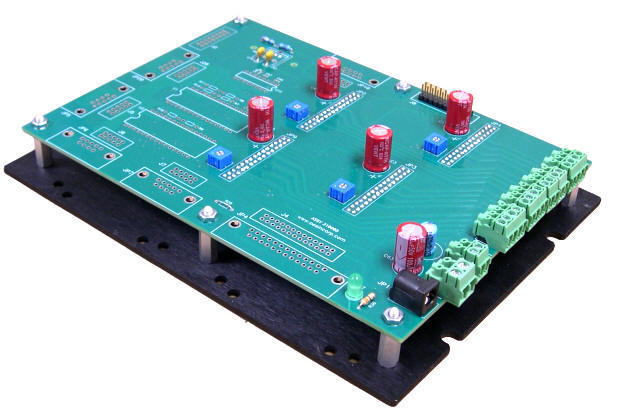

Stepper Motor Driver
Module
|
|
|
Features
- Zero To 2 Amps Phase Current
- +15 VDC to +50 VDC Power Supply
- Running Motor Current Is Easily Set by Trim Potentiometers
- 10 Micro-steps per Step Resolution
- Up to 4 Axes
- Auto Current Reduction
- 300 KHz Max Step Rate
- 3 W Dissipation at 3 A per Phase
- 20KHz Master Oscillator PWM
- 0 C To 70 C Operating Temperature
- LED Power Indicator
- Anodized Aluminum Base
- Modular 2-Piece Motor Connector
|
|
|
The SMDM series is a high performance, cost effective stepper motor driver
module to
implement intelligent stepper motor control.
|
|
ELECTRICAL
SPECIFICATIONS
|
|
Supply Voltage
|
+15 to +50 VDC
|
|
Phase Current
|
Zero to
3.0 Amps
|
|
Auto Current Reduction
|
75% of Set Current, 1 Second
After Last Step Pulse
|
|
Step Frequency
|
0 to
300 kHz
|
|
Weight
|
1.3 lbs (0.6 kg)
|
|
ENVIRONMENT
|
|
Heat Sink Temperature
|
0 oC to 70 oC
|
|
Ambient Temperature
|
0 oC to 50 oC
|
|
Storage Temperature
|
-40 oC to 125 oC
|
|
Humidity
|
0 - 95% with no condensation
|
|
|
|
|
