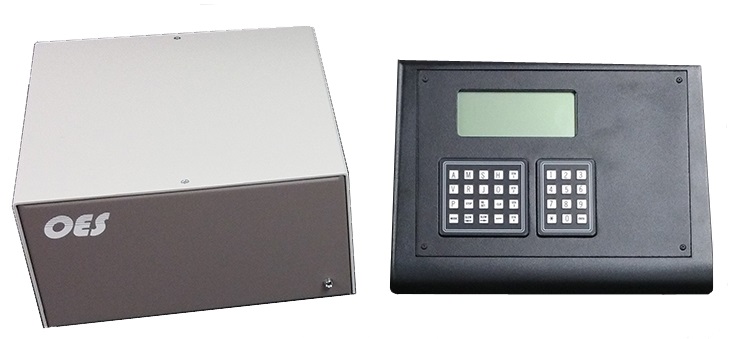

Stand-alone Motor Control System
Any Combination of Stepper and Servo Motors,
SONATA Series
|
|
|
|
|
|
Features
- Plug-and-Play
- Quick and Easy to Install
- Very Compact and Easy to Use
-
No Programming is
Required
- Low Power Consumption, High Torque Motors, High
Speed Capability
- 4-Line LCD
- 32-key Keypad
- Optional Quadrature Encoder Feedback
-
Built-in Self Test
- Available to Drive Stepper, DC Servo,
Brushless, and Voice Coil Motors
- Totally Integrated Solution
- Evaluation Unit Is Available upon Request
- Available in 19 inch Rack Mount Enclosure
|
|
|
Capabilities
|
|
Stepper Motor
Driver
- Standard to 3 Amps Phase Current, Higher Current Capability Is Also Available
- +12 VDC to +80 VDC Power Supply
- Standard 10 Micro-steps per Step, Other Resolutions Are Also Available
- Size 8 to 42 Motors
- Auto Current Reduction
DC and Three Phase Brushless
Motor Driver
-
Up to 20 Amps Phase
Current
-
+18 VDC to +80 VDC Power
Supply
Supply Voltage
- Typical, 90 ~ 130 VAC, 180 ~ 260 VAC, 80 W
- Optional External DC Power Supply
|
|
This motion
control system is stand-alone, easy-to-use, plug-and-play and
cost effective solution for motion control
applications.
The SONATA series of stepper and
servo motor controllers is designed
to control up to four axes of motion
for the user without prior motion control experience.
Each system includes the power supplies, the motion controller,
the micro-stepper and/or servo motor drivers.
The
operator interface terminal makes the system totally stand-alone
and allows the operator to interact with the motion controller without
needing an additional PC.
This series supports up to 4 axes of motion.
The system can also be operated using an analog
joystick or a trackball.
The
speed of the motor is proportional
to the tilt angle of the
joystick
or the rotational speed of
the trackball.
More Info...
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
|
SONATA-1-STPR-01
|
Plug-and-Play
Single-axis
Stand-alone Stepper Motor Control System
|
Click to Get a Quote
|
|
SONATA-2-STPR-01
|
Plug-and-Play
Two-axis
Stand-alone Stepper Motor Control System
|
Click to Get a Quote
|
|
SONATA-3-STPR-01
|
Plug-and-Play
Three-axis
Stand-alone Stepper Motor Control System
|
Click to Get a Quote
|
|
SONATA-4-STPR-01
|
Plug-and-Play
Four-axis
Stand-alone Stepper Motor Control System
|
Click to Get a Quote
|
This series is suitable for two-phase stepper
motors.
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
Part No.
|
Description
|
Amount
|
|
SONATA-1-SRVO-01 |
Plug-and-Play
Single-axis
Stand-alone DC
Servo
Motor Control System
|
Click to Get a Quote
|
|
SONATA-2-SRVO-01 |
Plug-and-Play
Two-axis
Stand-alone DC Servo Motor Control System
|
Click to Get a Quote
|
|
SONATA-3-SRVO-01 |
Plug-and-Play
Three-axis
Stand-alone DC Servo Motor Control System
|
Click to Get a Quote
|
|
SONATA-4-SRVO-01
|
Plug-and-Play
Four-axis
Stand-alone DC Servo Motor Control System
|
Click to Get a Quote
|
This series is suitable for DC Servo Motor with Quadrature
Incremental Optical Encoders .
Servo Motor Drivers:
Up to
4.0 Amps Phase Current
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
Part No.
|
Description
|
Amount
|
|
SONATA-1-BLDC-01 |
Plug-and-Play
Single-axis
Stand-alone Brushless DC
Servo
Motor Control System
|
Click to Get a Quote
|
|
SONATA-2-BLDC-01 |
Plug-and-Play
Two-axis
Stand-alone
Brushless
DC Servo Motor Control System
|
Click to Get a Quote
|
|
SONATA-3-BLDC-01 |
Plug-and-Play
Three-axis
Stand-alone
Brushless
DC Servo Motor Control System
|
Click to Get a Quote
|
|
SONATA-4-BLDC-01
|
Plug-and-Play
Four-axis
Stand-alone Brushless DC Servo Motor Control System
|
Click to Get a Quote
|
This series is suitable for
three phase brushless DC Servo Motor with
Quadrature Incremental Optical Encoders and hall effect sensors.
Servo Motor Drivers:
Up to 20.0 Amps Typical Phase Current
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
For a different configuration, please
contact us
for a prompt quotation.
|
