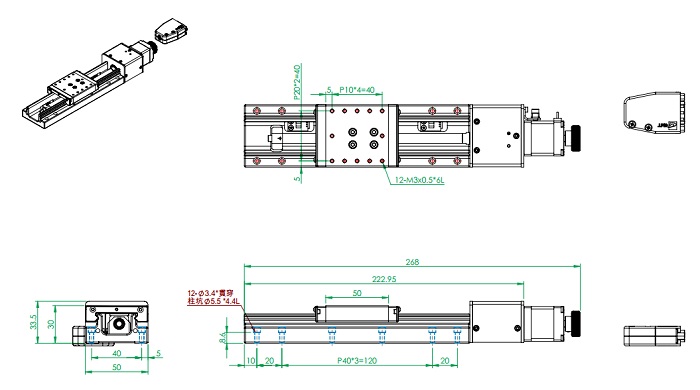

This motorized
X-axis positioning is made of stainless steel without cover.
The stage size is 50 x 50 mm.
The Range of Travel is 100 mm.
The Load Capacity is 10 kg.
The
resolution is 1 micron / 0.5 microns with 10 / 20
micro-steps per step motor driver.
The typical repeatability accuracy is ± 2 microns.
The typical positioning accuracy is 25 microns.
The maximum speed is 20 mm / sec.
|
