Motorized XY-axis Linear Stainless Steel Type with Cover Positioning Stage

Home > Motorized Precision Stages

motorized Single-axis Linear Positioning Stage Picture

This motorized  XY-axis positioning is made of stainless steel with cover.

The stage size is 80 x 80 mm.

The Range of Travel is 75 mm.

The Load Capacity is 14 kg.

The resolution is 10 microns / 5 microns .

The typical repeatability accuracy is ± 1 microns.

The typical positioning accuracy is 5 microns.

The maximum speed is 40 mm / sec.


Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed


XY 80 x 80 75 14 ± 1 microns 5 microns 40 mm / sec.

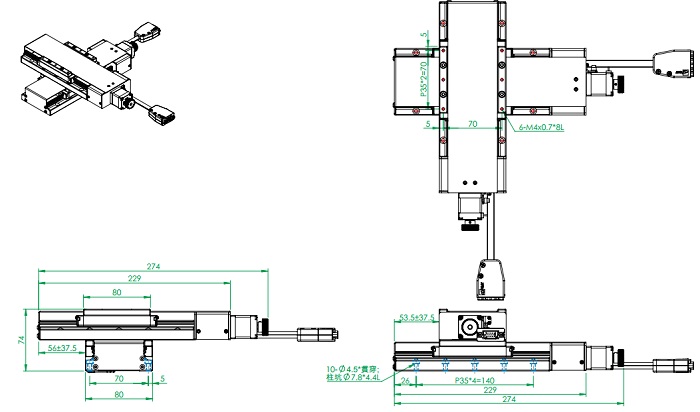

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
CYC8075-S2NN-ND-P2 Motorized Dual-axis Linear Positioning Stage Made of Stainless Steel with Cover Click to Get a Quote
