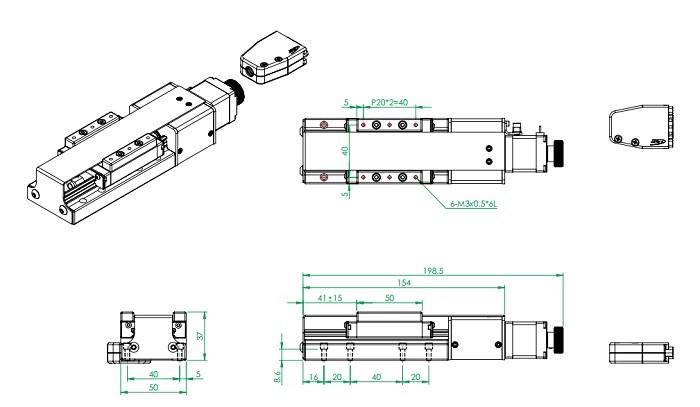

X-axis positioning is made of aluminum alloy.
The stage size is 50 x 50 mm.
The Range of Travel is 30 mm.
The Load Capacity is 10 kg.
The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.
The typical repeatability accuracy is ± 0.5 microns.
The typical positioning accuracy is 5 microns.
The maximum speed is 20 mm / sec.
