Motorized Goniometer Stage
|
|
Home >
Motorized Goniometer Stages |
|

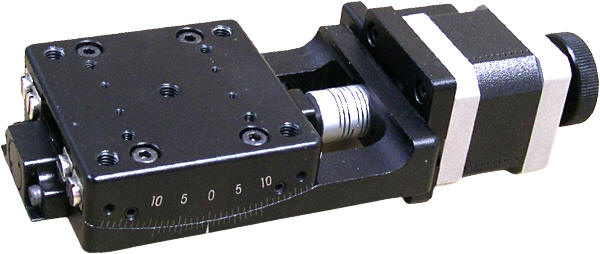

This
motorized
goniometer
is
made
of
aluminum
alloy
with
an
elegant
black
anodized
surface.
The
bench
size
is
65 X
65
mm
and
has
a
body
weight
of
0.75
kg.
The
drive
mechanism
is
worm
and
worm
gear.
The
worm
gear
ratio
is
1° (stage) : 352° (motor).
It
provides
+/-10°
of
rotation
at a
maximum
speed
of
14°
per
second
with
stepper
motor.
The
maximum
load
of
this
goniometer
table
is 5
kg.
This
goniometer
stage
is
also
available
with
a
Three
Phase
Brushless
Servo
Motor
with
Quadrature
Incremental
Optical
Encoder
and
optical
encoder.
The
calibrated
indicator
shows
the
angle
of
rotation.
The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.
This
stage
requires
a
Motion Controller
that can be
ordered as a
complete
plug-and-play
system with
RS-232, USB,
joystick,
trackball,
and keypad
control.
Specifications
|
Type |
AK110-10 |
|
Range of Travel |
+/-10° |
|
Table Size |
65 mm x65 mm |
|
Gear Ratio |
1° (stage) : 352° (motor)
|
|
Height of Rotation Stage |
75 mm +/-0.2 mm |
|
Drive Mechanism |
Worm Gear |
|
Travel Guide |
Crossed-roller Guide |
| Stepper Motor
 |
|
|
|
Typical Phase Resistance
|
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
|
1 |
+5 VDC |
|
2 |
CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
3 |
CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
4 |
Common |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
|
7 |
Stepper Motor Phase A- |
|
8 |
Stepper Motor Phase B+ |
|
9 |
Stepper Motor Phase B- |
|
|
|
Base Material |
Aluminum Alloy |
|
Surface Treatment |
Black Anodized |
|
Load Capacity |
5 kg |
|
Weight |
0.75 kg |
|
Resolution |
Stepper
Motor
Driver or
Optical
Encoder
Dependent |
|
Rotation Center Deflection Accuracy |
0.03 mm |
|
Maximum Speed with Stepper Motor |
10 °/sec |
|
Maximum Speed with DC Motor |
45 °/sec |
|
Typical Repeatability |
+/- 0.01 degrees |
|
Typical Positioning Accuracy |
0.05 degrees |
|
|
Stepper Motor Driven Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
AK110-10-01 |
Stepper Motor Driven Goniometer Stage, Table Size 65x65 mm |
Click to Get a Quote |
|
AK110-10-02 |
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm |
Click to Get a Quote |
|
AK110-10-03 |
DC
Servo Motor with Quadrature Incremental
Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm |
Click to Get a Quote |
|
AK110-10-04 |
Stepper Motor Driven Goniometer Stage
with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the
back of the Stepper Motor, Table Size 65x65 mm |
Click to Get a Quote |
|
