Manual Motion Controller and Motor Driver Using a Joystick
Any Combination of Stepper and Servo Motors, JMCD Series

Hardware Reference Manual in PDF Other Motor Controller and Driver Products Motion Controller Comparison Table Related Products Motorized Linear Actuators Motorized XY Stages Motorized Linear Lift Stages Motorized Rotary Stages Combined Linear-Rotary Stages Motorized Goniometer Stages Motorized   Multi-axis Stages

Features Plug-and-Play Quick and Easy to Install Very Compact and Easy to Use Low Power Consumption, High Torque Motors, High Speed Capability Available to Drive Stepper, DC Servo Motor with Quadrature Incremental Optical Encoders Optional Positive and Negative Limit Switches per Axis Optional Trackball Control Optional Positive and Negative Limit Switches per Axis Single Handed 1, 2, 3 or 4-axis Control Motor Speed Proportional to the Tilt Angle Three Speed Selection Keys Long Life Step Rates are set via USB Totally Integrated Solution Evaluation Unit Is Available upon Request Desktop Power Supply Included   Software Easy System Setup and Evaluation Menu Driven Free Software Included Stepper Motor Driver Up to 3 Amps Phase Current Size 8 to 42 Motors Auto Current Reduction Easily Adjusted Using Onboard Potentiometers

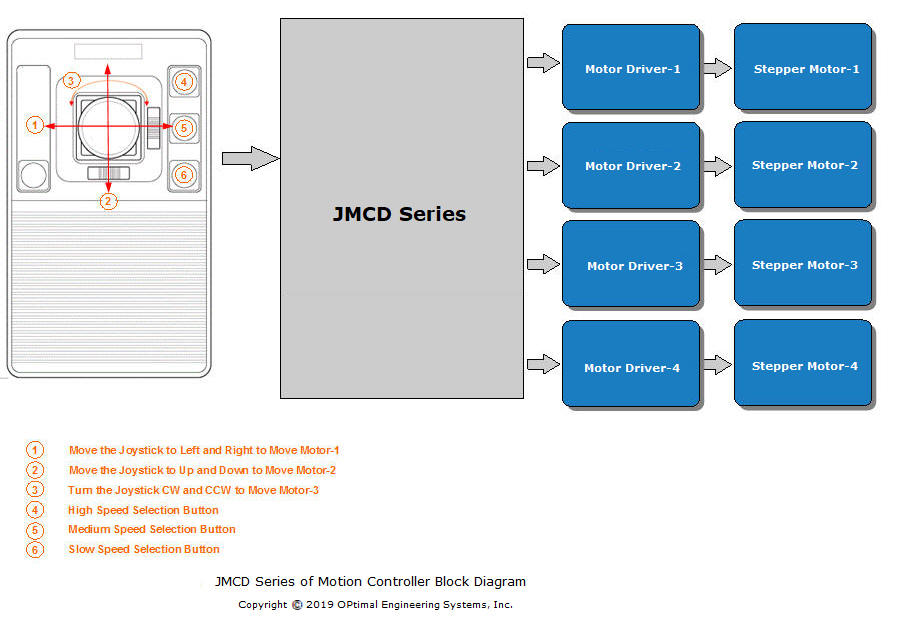

This motion control system is capable of moving a group of motors via controlling the movement of a  joystick  or  trackball . The speed of the motor is proportional to the tilt angle of the joystick or the rotational speed of the trackball.

This series is complete multi-axis, multi-speed, stand-alone, easy-to-use, plug-and-play, and low cost for manual stepper or servo motor control applications . They can replace or upgrade manual systems, motorizing them with precision joystick and/or trackball control.

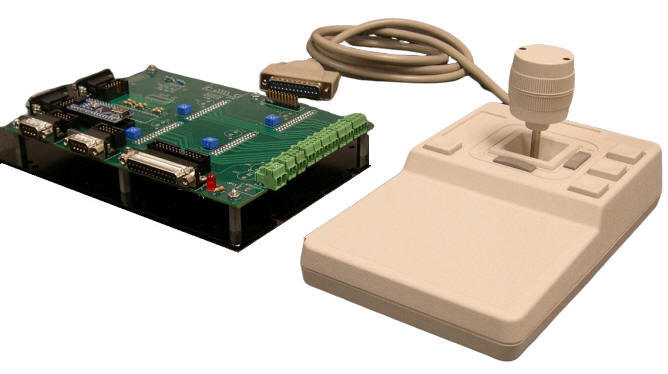

Each system includes the  power supplies, controller,  the micro-stepper and/or servo motor drivers.

Controlling devices include analog joystick,  trackball, two-phase quadrature signals,  digital potentiometer, DC voltage, and external step and direction signals.

NO PROGRAMMING IS NECESSARY.

This series is also available without the drivers. The outputs from the system would be power, enable, step and direction signals. This configuration is suited to interface with the "integrated motor and drivers".
