This series is an ideal choice to connect to stepper motor, DC motors and
servo motor drivers for manual control using a joystick. The output signals
are;
- Step and Direction
- Quadrature Output
- PWM and Direction

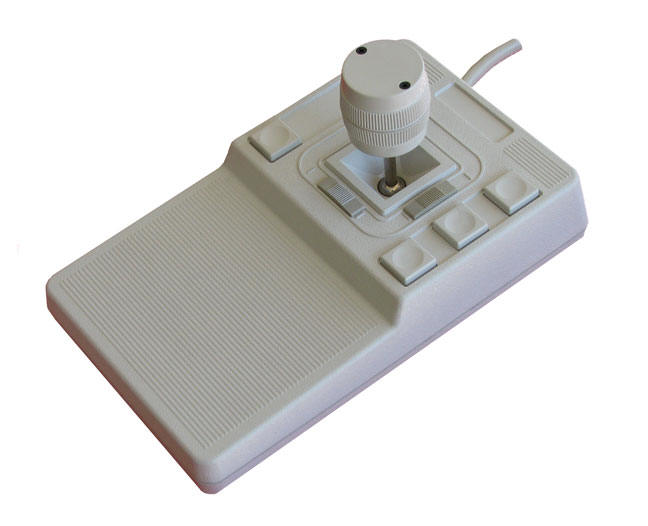

These are easy to use, single-handed, ergonomic
joysticks that provide proportional control of the X, Y, and Z axis of
from one to three actuators. Low, medium, and high speed ranges are
button selectable. The X, Y, and Z axis speeds are controlled by the
tilt angle of the handle and the angle of rotation of the knob. The
maximum speeds may be set by the user via the supplied, easy to use
GUI.
The JMC-1, JMC-2, and JMC-3 Series of Joysticks include
: -01 series for Step and Direction Signal outputs, -02 series for
Quadrature Signal outputs, -03 series for PWM and Direction Signal
outputs, and series for -04 a USB interface.
For stability, the footprint of these joysticks is 4.76 inches wide by
7.80 inches long. These, low cost, long life, Joysticks have a 5.5 feet
long cord and the standard connector is a 25-pin-DB-25, male connector.
|
