Host Controlled Motor Control System, RS-232, USB Interface
Any Combination of Stepper and Servo Motors
FIGARO Series
|

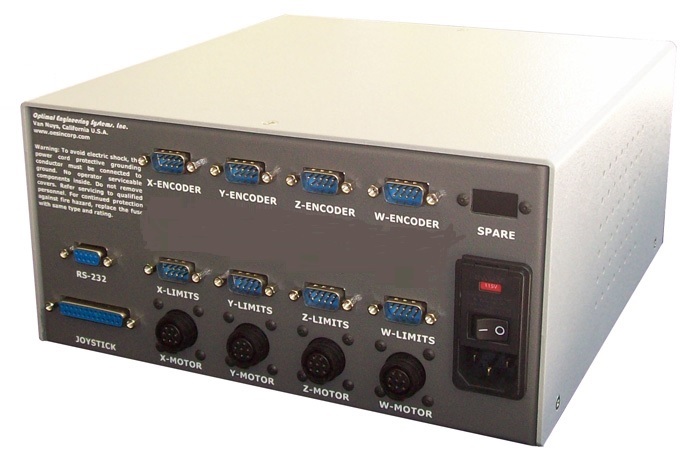

![Host Controlled Motor Control System, RS-232, USB Interface](http://www.oesincorp.com/images/host-controlled-motion-control-system.jpg) |
|
|
Features
- Plug-and-Play
- Quick and Easy to Install
- Very Compact and Easy to Use
- Low Power Consumption, High Torque Motors, High
Speed Capability
- Serially Controllable, Programmable or Manual Control
- Host Controlled, PLC, C/C++, Python, Visual Basic, LabVIEW™,
MATLAB™
- Capable of Running Script Command
- Available to Drive Stepper, DC Servo, Brushless, and
Voice Coil Motors
- Optional Joystick / Trackball Interface
- Optional HOME and LIMIT Switches
- Optional TTL / CMOS Inputs and Outputs
- Optional Quadrature Encoder Feedback
- Totally Integrated Solution
-
Available in 19 inch Rack Mount Enclosure
- Evaluation Unit Is Available upon Request
|
|
Software
-
Easy System Setup and Evaluation
-
Menu Driven
-
Free Software Included
Stepper Motor Driver
- Up to 7 Amp Phase Current
- Up to 256 Micro-steps per Step Resolution
- Size 8 to 42 Motors
- Auto Current Reduction
DC and Three Phase Brushless Motor
Driver
- Up
to 40 Amps Phase Current
- +18
VDC to +80 VDC
Communication Interface
- RS-232 Interface
-
Optional Ethernet Interface
- Optional USB Interface
|
|
|
The FIGARO series of motor control system is an easy-to-use,
plug-and-play and
cost effective solution for stepper
or DC motor control applications.
Each system
includes
the power supplies, the motion controller card,
the
micro-stepper and/or servo motor drivers.
This motor control system supports up to 4 axes of motion.
The
external host such as a PC, micro-controller or PLC sends a
series of commands to the controller via the RS-232 serial port.
The controller processes and executes the incoming commands.
It is also possible to download a series of commands into the
program memory.
In this mode, the controller is capable to perform a
sequence of instructions without need for a host to send the
commands.
The system can also be operated using an
analog joystick or a trackball.
The speed of the
motor is proportional to the tilt angle of the joystick
or the rotational
speed of the trackball.
|
Ordering Information
Part No. |
Description |
Amount |
FIGARO-1-STPR-01 |
Plug-and-Play
Single-axis
Host Controlled Stepper Motor Control System
|
Click to Get a Quote |
FIGARO-2-STPR-01 |
Plug-and-Play
Two-axis
Host Controlled Stepper Motor Control System
|
Click to Get a Quote |
FIGARO-3-STPR-01 |
Plug-and-Play
Three-axis
Host Controlled Stepper Motor Control System
|
Click to Get a Quote |
FIGARO-4-STPR-01 |
Plug-and-Play
Four-axis
Host Controlled Stepper Motor Control System
|
Click to Get a Quote |
This series is suitable for two-phase stepper
motors.
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
Part No. |
Description |
Amount |
FIGARO-1-SRVO-01 |
Plug-and-Play
Single-axis
Host Controlled DC
Servo Motor Control System |
Click to Get a Quote |
FIGARO-2-SRVO-01 |
Plug-and-Play
Two-axis
Host Controlled DC Servo Motor Control System |
Click to Get a Quote |
FIGARO-3-SRVO-01 |
Plug-and-Play
Three-axis
Host Controlled DC Servo Motor Control System |
Click to Get a Quote |
FIGARO-4-SRVO-01 |
Plug-and-Play
Four-axis
Host Controlled DC Servo Motor Control System |
Click to Get a Quote |
This series is suitable for
DC Servo Motor(s) with Quadrature Incremental Optical Encoder(s).
Servo Motor Drivers:
Up to 20.0 Amps Phase Current
Power Supply: Input Power; 115 or 230 VAC, 50 – 60 Hz
|
Part No. |
Description |
Amount |
FIGARO-1-BLDC-01 |
Plug-and-Play
Single-axis
Host Controlled Brushless DC
Servo Motor Control System |
Click to Get a Quote |
FIGARO-2-BLDC-01 |
Plug-and-Play
Two-axis Host
Controlled
Brushless DC Servo Motor Control System |
Click to Get a Quote |
FIGARO-3-BLDC-01 |
Plug-and-Play
Three-axis Host
Controlled
Brushless
DC Servo Motor Control System |
Click to Get a Quote |
FIGARO-4-BLDC-01 |
Plug-and-Play
Four-axis Host
Controlled
Brushless DC Servo Motor Control System |
Click to Get a Quote |
This series is suitable for
three phase brushless DC Servo Motor(s) with Quadrature Incremental Optical Encoder(s)
and hall
Effect Sensor(s).
Servo Motor Drivers: Up to
20.0 Amps Typical Phase Current
Power Supply: Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
For a different configuration, please
contact us for a prompt quotation.
|
|
