Three Phase Brushless Motor, Size 17
 Rated Speed
4000 (rpm)

Torque 35.4  (oz-in)

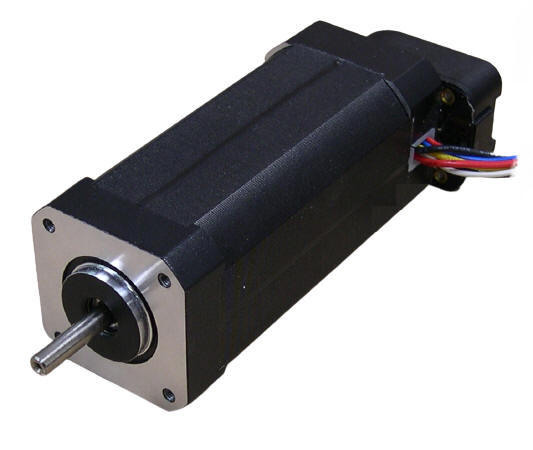

  Three Phase Brushless Motor, Size 23

Item Rated
Voltage
(V)
Rated
Power
(Watts)
Rated
Torque
(oz-in)
Rated
Speed
(rpm)
Torque
Constant
(oz-in/A)
Back EMF
Voltage
(V/kRPM)
Line-to-Line
Resistance
(Ohms)
Line-to-Line
Inductance
(mH)
Rotor
Inertia
(oz-in-sec2)
"L"
Length
(in)
CMZ172D-24V-4000 24 104 35.4 4000 5.32 3.10 0.30 0.50 0.001359 3.95
Incremental Quadrature Optical Encoder




5-pin Male Polarized Latching Connector




1 CABLE BROWN or GREEN CHANNEL-B, TTL Output
2 CABLE RED +5 VDC Input
3 CABLE WHITE CHANNEL-A, TTL Output
4   Not Connected
5 CABLE BLACK COMMON, (+5 VDC RETURN, GROUND)







Motion Control Components
