Motorized Goniometer Stage

Home > Motorized Goniometer Stages

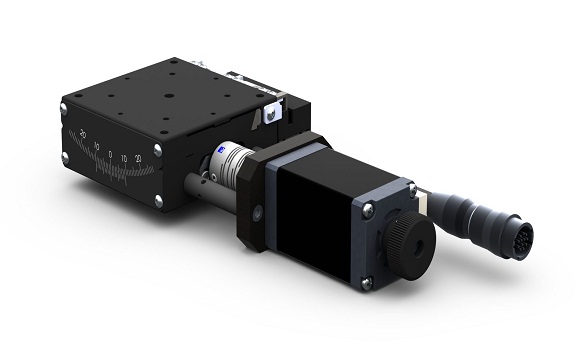

This motorized goniometer is made of Copper alloy with an Black fluorine resin treatment.

The bench size is 60 X 60 mm and has a body weight of 0.72 Kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 188:1.

It provides +/-25° of rotation at a maximum speed of 47.87° per second.

The maximum load of this goniometer table is 6 Kg.

The resolution of 0.00096° is achieved with a 10 micro-steps per step stepper motor driver. This goniometer stage is
also available with a servo motor and optical encoder.

The calibrated indicator shows of the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage is compatible with OES' line of Motion Controllers .

Specifications

Type AXG6-35CS

M
e
c
h
n
i
c
a
l

s
p
e
c
Table Size 60 X 60 mm

Range of Travel +/-25°

Turning Center Height 35 mm

Turning Center precision
Φ 0.1 mm

Gear Ratio Worm Gear (Ratio 1/ 188)

Travel Guide Dovetail slot type

Load 6 Kg

Body Weight 0.72 Kg

Material Copper alloy

Surface treatment Black fluorine resin treatment

Line-generating method R/L

T
y
p
i
c
a
l

A
c
c
u
r
a
c
y

2-phase
resolution
(pulse) Resolution Full/Half 0.0096° / 0.0048°

Micro Stepping(1/10 step) +/- 0.00096°

Maximum Speed 47.87°/sec

Typical Reciprocating Position Precision +/- 0.003°

Typical Ideal Run +/- 0.02°

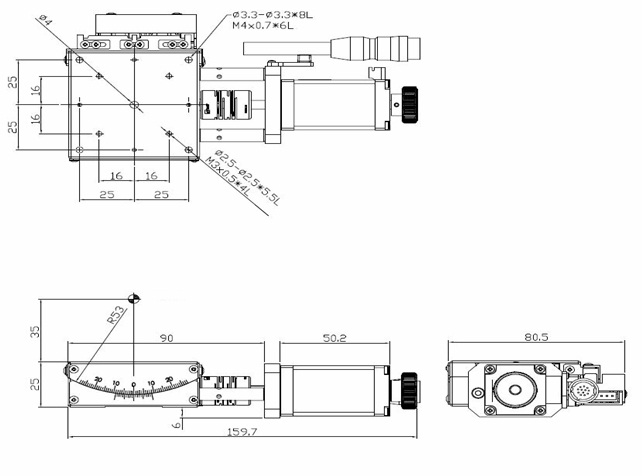

Mechanical Drawing

Ordering Information

Part No.	Description	Amount
AXG6 35CS	Motorized Goniometer Stage, Table Size 60 x 60 mm	Click to Get a Quote
