The LS series of linear actuators or linear stages is a slider actuated by a motor driven ball screw and guided by a linear guide way with a U-shape rail. The slider acts as the ball screw's nut and the guide way's block.

These actuators may be configured as X-Y, X-Z or X-Y-Z.

All the following actuators may be supplied with any of our stepper motors, brush DC motors and  brushless DC motors.

Motors with optical encoders are also available.
LS-40 Series
1.4" (36 mm) to 5.3" (136 mm) of Travel
Pitch of Lead Screw,  1 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-40-36
data sheet		 Motorized Single-axis Stage with 36 mm of Travel, 1 mm per motor revolution, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-40-86
data sheet		 Motorized Single-axis Stage with 86 mm of Travel, 1 mm per motor revolution, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-40-136
data sheet 		Motorized Single-axis Stage with 136 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
 With Cover
Part No. Description

Amount
LS-40-36-C
data sheet		 Motorized Single-axis Stage with 36 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-40-86-C
data sheet		 Motorized Single-axis Stage with 86 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-40-136-C
data sheet 		Motorized Single-axis Stage with 136 mm of Travel, Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50 Series
2.7" (70 mm) to 8.6" (220 mm) of Travel
Pitch of Lead Screw, 2 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-50-70
data sheet		 Motorized Single-axis Stage with 70 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-120
data sheet		 Motorized Single-axis Stage with 120 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-170
data sheet 		Motorized Single-axis Stage with 170 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-220
data sheet		 Motorized Single-axis Stage with 220 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
 With Cover
Part No. Description

Amount
LS-50-70-C
data sheet		 Motorized Single-axis Stage with 70 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-120-C
data sheet		 Motorized Single-axis Stage with 120 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-170-C
data sheet		 Motorized Single-axis Stage with 170 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-50-220-C
data sheet		 Motorized Single-axis Stage with 220 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60 Series
 2.3" (60 mm) to 21" (535 mm) of Travel
Pitch of Lead Screw,  5 and 10 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-60-60
data sheet		 Motorized Single-axis Stage with 60 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-60-85
data sheet		 Motorized Single-axis Stage with 85 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-110
data sheet		 Motorized Single-axis Stage with 110 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-60-135
data sheet		 Motorized Single-axis Stage with 135 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-210
data sheet 		Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-60-235
data sheet		 Motorized Single-axis Stage with 235 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-310
data sheet		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-60-335
data sheet		 Motorized Single-axis Stage with 335 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-410
data sheet		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-435
data sheet		 Motorized Single-axis Stage with 435 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-60-510
data sheet		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-535
data sheet		 Motorized Single-axis Stage with 535 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
 With Cover
Part No. Description

Amount
LS-60-60-C
data sheet		 Motorized Single-axis Stage with 60 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-85-C
data sheet		 Motorized Single-axis Stage with 85 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-110-C
data sheet		 Motorized Single-axis Stage with 110 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-135-C
data sheet		 Motorized Single-axis Stage with 135 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-210-C
data sheet 		Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-235-C
data sheet		 Motorized Single-axis Stage with 235 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-310-C
data sheet		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-335-C
data sheet		 Motorized Single-axis Stage with 335 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-410-C
data sheet		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-435-C
data sheet		 Motorized Single-axis Stage with 435 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-510-C
data sheet		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-60-535-C
data sheet		 Motorized Single-axis Stage with 535 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86 Series
8.2" (210 mm) to 27.9" (710 mm) of Travel
Pitch of Lead Screw, 10 and 20 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-86-210
data sheet		 Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-86-310
data sheet		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-86-410
data sheet		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-86-510
data sheet		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-86-610
data sheet 		Motorized Single-axis Stage with 610 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LS-86-810
data sheet		 Motorized Single-axis Stage with 810 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
 With Cover
Part No. Description

Amount
LS-86-210-C
data sheet		 Motorized Single-axis Stage with 210 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86-310-C
data sheet		 Motorized Single-axis Stage with 310 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86-410-C
data sheet		 Motorized Single-axis Stage with 410 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86-510-C
data sheet		 Motorized Single-axis Stage with 510 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86-610-C
data sheet		 Motorized Single-axis Stage with 610 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-86-810-C
data sheet		 Motorized Single-axis Stage with 810 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote

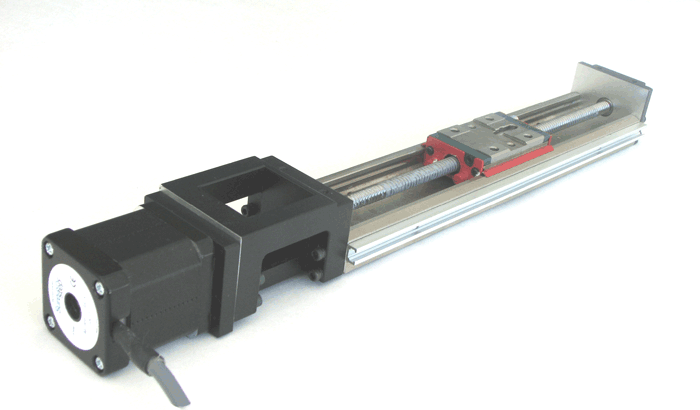

LS-100 Series
32.5" (828 mm) to 48.3" (1228 mm) of Travel
Pitch of Lead Screw, 10 and 20 mm per Motor Revolution
 Without Cover
Part No. Description

Amount
LS-100-828
data sheet		 Motorized Single-axis Stage with 828 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-928
data sheet		 Motorized Single-axis Stage with 928 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1028
data sheet		 Motorized Single-axis Stage with 1028 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1128
data sheet		 Motorized Single-axis Stage with 1128 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1228
data sheet 		Motorized Single-axis Stage with 1228 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
 With Cover
Part No. Description

Amount
LS-100-828-C
data sheet		 Motorized Single-axis Stage with 828 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-928-C
data sheet		 Motorized Single-axis Stage with 928 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1028-C
data sheet		 Motorized Single-axis Stage with 1028 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1128-C
data sheet		 Motorized Single-axis Stage with 1128 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LS-100-1228-C
data sheet		 Motorized Single-axis Stage with 1228 mm of Travel, End of Travel Switches, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1 Series
2.0" (50 mm) to 12.0" (304 mm) of Travel

Specifications
Straight Line Accuracy 0.0007 inches / inch
Repeatability 0.0004 inches
Lead Accuracy 0.003 inches / foot
Lead Screw Journal 3 /16" Diameter for 2, 4 & 6" Travel version
1 /4" Diameter for 8, 10 & 12" Travel version
Material
Carriage & Base Black, Anodized Aluminum
Rolling Elements Hardened Steel
Acme Lead Screws 303 Stainless Steel
Nut Anti-Backlash Engineered Plastic





Part No. Description

Amount
LA-1-2 Motorized Single-axis Stage with 2.0" of Travel, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1-4 Motorized Single-axis Stage with 4.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1-6 Motorized Single-axis Stage with 6.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1-8 Motorized Single-axis Stage with 8.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1-10 Motorized Single-axis Stage with 10.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote
LA-1-12 Motorized Single-axis Stage with 12.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). Click to Get a Quote

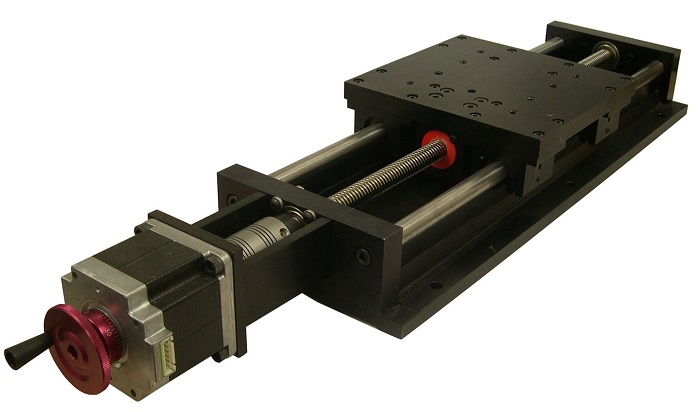

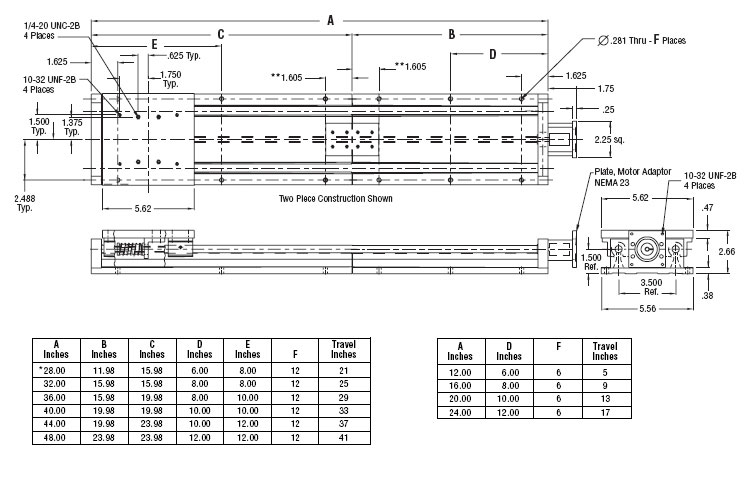

LA-2 Series
4.0" (101.6 mm) to 40.0" (1016.0 mm) of Travel

The following series is also available with bellows.








Specifications:
Flatness +/- .0002 in/in
Straightness +/- .0002 in/in
Repeatability +/- .0005 in
Positional Accuracy +/- .0006 in/in
Coefficient of Friction 0.01 re-circulating ball linear bearing
0.20 for engineered plastic linear bearing
Break-away Torque 10 to 25 inch-ounce
Weight System 10 with 5 inches of Travel: 8.1 pounds. For longer travels add 0.4 pounds per inch of Travel. (Carriage assembly 2.4 pounds)
Material
  • Aluminum base, carriage and pillow blocks

  • 303 stainless steel lead screw with engineered plastic nut

  • C1060 hardened & ground shafting & self-aligning re-circulating linear ball bearings or 303 stainless steel Shafting & engineered plastic bearings

  • Stainless steel radial bearings ABEC 7

  • Aluminum zero backlash coupling

Finish Aluminum black anodize
Loads Maximum

  • Loads centered on carriage




  • Static 700 pounds — Dynamic 300 pounds for re-circulating ball (50 million inches of life)




  • Dynamic 240 pounds for engineered plastic (PV = 10,000, V = 100 Fpm)






Part No. Description

Amount
LA-2-04 Motorized Single-axis Stage with 4.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-08 Motorized Single-axis Stage with 8.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-12 Motorized Single-axis Stage with 12.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-16 Motorized Single-axis Stage with 16.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-20 Motorized Single-axis Stage with 20.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-24 Motorized Single-axis Stage with 24.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-28 Motorized Single-axis Stage with 28.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-32 Motorized Single-axis Stage with 32.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-36 Motorized Single-axis Stage with 36.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote
LA-2-40 Motorized Single-axis Stage with 40.0" of Travel with Home Switch, Motor Cable Length 6 ft (1.8 m). This stage is also available with bellows. Click to Get a Quote






X-Y Configuration





X-Z Configuration



Customized solutions can be provided upon request.
