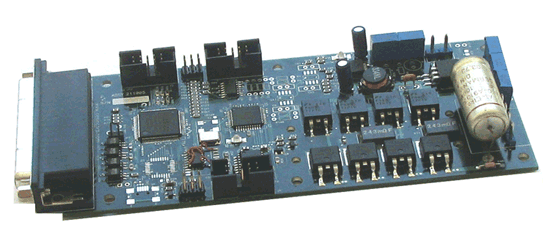

DC and Brushless Servo Motor
Driver
|
|
 |
|
Related Products
|
Features
- Runs DC Servo
Motors
- Four Quadrant Regenerative
Operation
- Fully Digital State-of-the-art Design
- Adjustable PID Gain Settings
-
Adjustable Maximum
Current Setting
-
PID Closed Loop Operation
- Up to 12 Amp Motor Output
- +18 VDC to +50 VDC Power Supply
- No Tachometer Feedback Needed
- +/- 1024 Count Servo Lock Range
- 0 ºC to 70 ºC Operating Temperature
-
Small Size: 6.235" X
2.850" (158.3 mm X 72.4 mm )
|
Command Source
- Encoder Following
- ±10 V Analog
- Step and Direction
Feedback
Supported
- Incremental Encoder
- ±10 V Analog
- Auxiliary Incremental Encoder
|
|
This series is a high performance, cost DC effective servo motor driver to
implement intelligent motion control. The driver incorporates an advanced
architecture and surface mount technology to achieve an exceptional power
density.
More Info...
|
Ordering Information
|
Part No. |
Description |
Amount |
|
SRVODRV-5006 |
Digital Servo Motor Driver,
up to +50 VDC
Power Supply, 12 Amps Maximum Current, 6
Amps
Continuous Current |
Click to Get a Quote |
|
