Belt Driven Linear Actuators

Related Products

Motion Controllers

These actuators may be configured as X-Y, X-Z or X-Y-Z.

All the following actuators may be supplied with any of our stepping motors, brush DC motors and brushless DC motors.

Motors with optical encoders are also available.

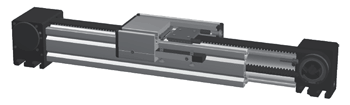

The carriage, which is driven by a linear belt that can be adjusted to reduce lash and is driven along the V-guides. The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel. GZE Actuators are available in multiple configurations; Single Carriage Single Wrap Around Carriage (WAC)

Customized solutions can be provided upon request.
