| Part No. |
Power (Watt) |
Transformer
|
Condition |
Amount |
| Each Secondary |
Secondaries Connected in Parallel |
Secondaries Connected in Series |
Output Voltage
(VDC) |
Current
(Amp) |
Output Voltage
(VDC) |
Current
(Amp) |
Output Voltage (VDC) |
Current
(Amp) |
| PWRSPLY-36-4.4
Wiring
Diagram |
160 |
+26
|
0
|
+26
|
0
|
+52
|
0
|
No Load |
Click to Get a Quote |
+18
|
4.4
|
+18
|
8.8
|
+36
|
4.4
|
Full Load |
|
Input Voltage |
115 VAC
230 VAC |
|
Input Frequency |
50 - 60 Hz |
|
All values are typical at 25
oC. |
Add $50.00 for optional low voltage output. This output voltage is
less than +40 VDC at 3 Watts. This output may be used to power the
OES controller card.
Please add -LV to the part number. |
|
|

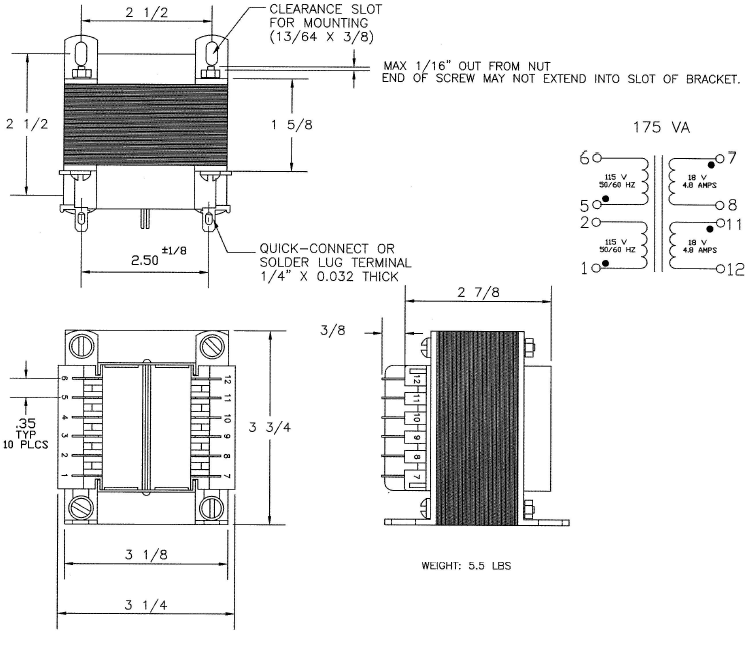

Mounting
Hole Diameter = 0.156"
Maximum Height = 1.7"
All Dimensions in inch. |
